Editor: CUeditor  (Free download )

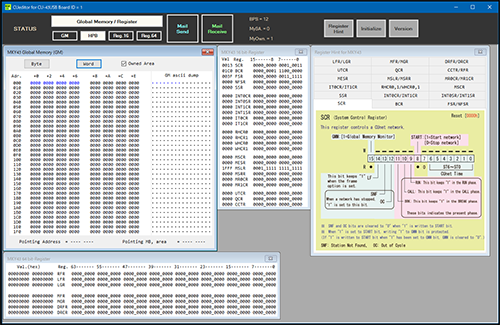

CUeditor is a GUI support tool for CUnet master boards.
You can operate memory and register on your monitor using this editor software with master board and slave board connected.



  • - You can access to the memory inside MKY43 just like editing memory.
  • - You can use this for evaluation or debugging system with slave devices connected.
  • - Help function for the detailed register description equiped.


Master USB
next CU-43USB

System requirements

  Recommended system repuirements
OS Windows 10 (64 bit / 32 bit)
Memory 200 MB or more
HDD space 10 MB or more


[ Cautions ]

- You cannnot revise, re-distribute, duplicate, and use some or all of the work without permission from StepTechnica Co,. Ltd.

- The copyright of all documents / program / program sources are belong to StepTechnica Co., Ltd.

- StepTechnica Co., Ltd. assumes no responsibility for any results caused by using softwares downloaded from our website.

- You need the driver software provided by StepTechnica Co., Ltd. to use this software. You can download it from the instroduction pages of each master board products.

If you accept the above cautions, download the program.

CUeditor Ver4.0.1 [ZIP: 21.4 MB] <free>

Editor setup method

Decompress the downloaded file. Execute "cueditor_setup_V401.exe" exist in the decompressed file and proceed setup,following monitor instructions. To uninstall the software, select "CUeditor Version" from [Settings]→[Apps]→[Apps & features] and click "uninstall".
