HLSB-36PCI1 (Discontinued Products)

HLSB-36PCI1

■ Discontinued: December 28, 2022

MKY36 mounted PCI board

HLSB-36PCI1 is a PCI expansion bus supported HLS communication board which mounts MKY36, a master IC of HLS family.
It provides easy operation of MKY36 (HLS) with library for Windows available in our downloads page and HLSeditor.
8-pin modular connector is equipped for HLS communication line and the operation can be evaluated with commercial CAT-3 or greater straight-through cable for 100BASE-TX.
The board format is low-profile PCI. Both of standard and low-profile size brackets are attached with the product.

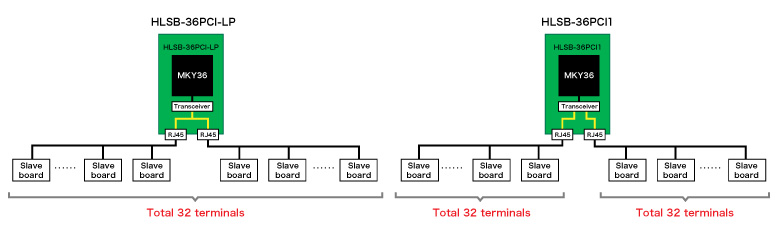

Difference between HLSB-36PCI-LP

Type Network connection Supported OS
Two-line connection 1-line crossover connection
HLSB-36PCI1 ○ ー Windows 10/8/7
HLSB-36PCI-LP ー ○ Windows 10/8/7

HLSB-36PCI1 must be at the end of HLS network connection, so the termination of HLS communication line is always being enabled.
Also, HLSB-36PCI-LP can be crossover-connected (limited to be 1-line connection) so it does not need to be a termination at the end of HLS network.

Main specifications

Item Specifications
HLS master IC MKY36 × 1 pc
HLS communication method Full-duplex/Half-duplex
HLS communication rate 12/6/3 Mbps (Rate can be set by MKY36 register.)
Termination 100 Ωfixed
Supported bus PCI Ver 2.2 supported 32-bit/33 MHz expansion bus
PCI owned area 16 KB contiguous memory area (PnP supported)
Maximum concurrent use 4 units
LED SCANL
CHK2L
CHK1L		 (Green)
(Red)
(Yellow)		 MKY36
MKY36
MKY36		 SCANL
CHK2L
CHK1L
Connector HLS communication connector RJ45 type × 2 pcs
Size 119.9 mm (W) × 64.4 mm (H) *Not including bracket
Low-profile supported
Weight 55 g (max)
Atmospheric conditions Temperature: 10℃ to 50℃
Humidity: 0% to 90% (With no condensation)
Power supply +5.0 V（PCIbus)
Consumption current 500 mA or lower
Accessory Low-profile bracket
Supported OS Windows 10 (64 bit/32 bit)
Windows 8.1 (64 bit/32 bit)
Windows 8 (64 bit/32 bit)
Windows 7 (64 bit/32 bit)
Provided software Windows driver, Library, HLSeditor
