MKY44 Digital I/O
Easy remote control over intelligent DIO
MKY44-IO Series can remotely control digital IO intelligently without using CPU.
MKY44-IO32A provides two different modes to choose.
MKY44 digital I/O series product introductions
Learn about the products in the MKY44 digital I/O series.
| DIO mode |  |
32DIN/DOUT with filter |
|---|---|---|
| MKY44-IO32A |  |
|
| PWM, UP/DOWN Counter mode |
|
2 ch 24 bits Up/Down counter (Encoder) 2 ch 16 bits PWM output |
| MKY44-IO32A | |
|
| CUB Easy+ |
The digital version of CUB Easy+ can be customized to customer specifications regarding board size and shape, connectors, and amps. You can use digital circuits that have been thoroughly evaluated and enjoy our service with peace of mind. |
|

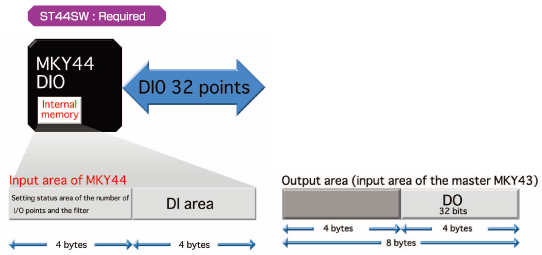

MKY44-IO32A (DIO mode)
 |
DIO 32 points: | Switching I/O by 4 bits |
| DI filter function: | Settable low-pass filter | |
| Sampling cycle: | 100μs to 1s | |
| Number of sampling times: | 1, 2, 4, 8, 10 |

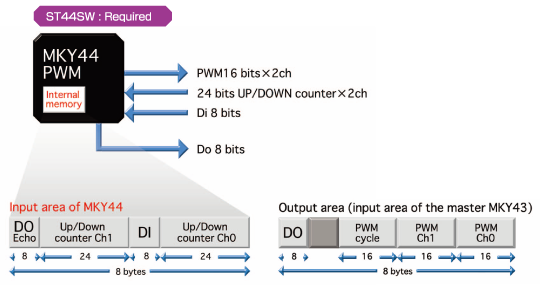

MKY44-IO32A (PMW, UP/DOWN counter mode)
|
16-bit PWM 2ch: | PWM cycle can be changed |
| 24-bit counter 2ch: | UP/DOWN counter input | |
| Filter function: | DI 8 bits |
