MKY44 Analog I/O
Easy remote control over analog IO
With the MKY44-AD/DA series, remote control of analog I/O can be achieved on one chip without using the CPU.

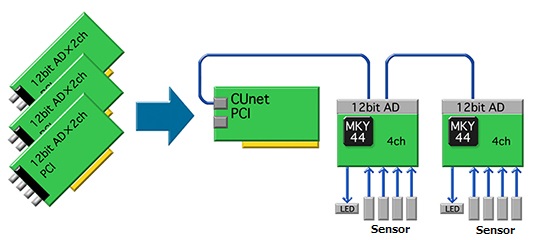

The numerous control boards previously used can now be consolidated into one CUnet master board.
All you need to do is to connect various types of slaves using CUnet.
MKY44 analog I/O series product introductions
Learn about the products in the MKY44 analog I/O series.
| 12bitAD 4ch |
|
12bits AD 4ch 4DIN/4DOUT No CPU is required Built-in AD converter |
|---|---|---|
| MKY44-AD12A |  |
|
| 16bitAD 2ch |
|
16bits AD 2ch 8DIN/8DOUT No CPU is required External AD converter （AD7682） |
| MKY44-AD16A |  |
|
| 16bitAD 4ch |
|
16bits AD 4ch No CPU is required External AD converter （AD7682） |
| MKY44-AD16B | |
|
| 16bitDA 2ch |
|
16bits DA 2ch 8DIN/8DOUT No CPU is required External DA converter （AD5752） |
| MKY44-DA16A | |
|
| 16bitDA 4ch |
|
16bits DA 4ch No CPU is required External DA converter （AD5754） |
| MKY44-DA16B | |
|
| Easy+ |
The analog version of Easy+ can be customized to customer specifications regarding board size and shape, connectors, and amps. You can use analog circuits that have been thoroughly evaluated and enjoy our service with peace of mind. |
|
MKY44-AD Series

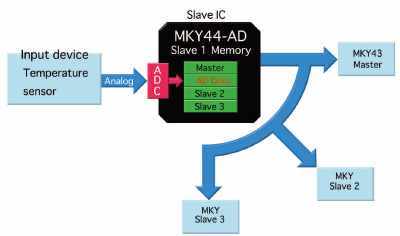

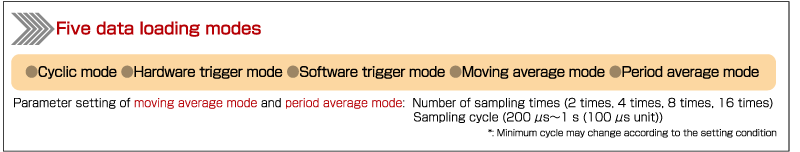

MKY44-AD Series selects the timing to load data from 5 modes and sets the detailed operation using parameters. The result data of the selected mode is automatically input to MKY44-AD Series. Sinse the input data is automatically copied (shared memory) to all CUnet ICs, analog control can be executed when user CPU just reads each CUnet IC memory. Althougn an external converter is required to use MKY44-AD16A/B, it is not necessary to be aware of its setting.

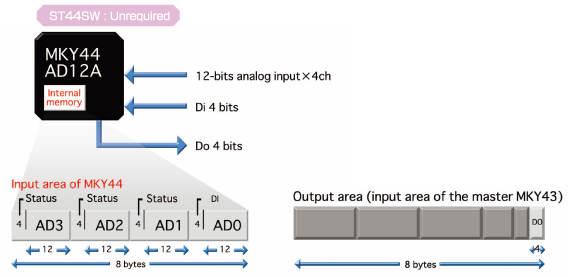

MKY44-AD12A
 |
12-bit AD 4ch: Built-in ADC | |
| DI 4 bits/DO 4 bits | ||
| Minimum sample cycle: 200 μs (Number of sampling times: at 2 times) | ||

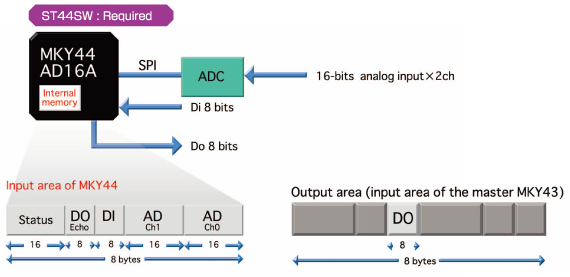

MKY44-AD16A
|
16-bit AD 2ch: ADC external (AD7682) | |
| DI 8 bits/DO 8 bits | ||
| Minimum sample cycle: 200μs (Number of sampling times: Max. 16times) | ||

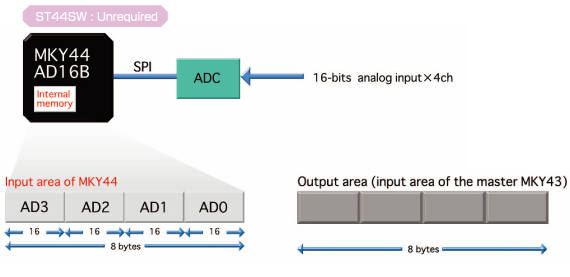

MKY44-AD16B
|
16-bi AD 4ch: ADC external (AD7682) | |
| Minimum sample cycle: 400μs (Number pf sampling times: Max. 16 times) | ||
MKY44-DA Series
MKY44-DA Series can control DA just by writing the data from user CPU to the memory of master IC (MKY43) corresponding to each slave (MKY44-DA Series).

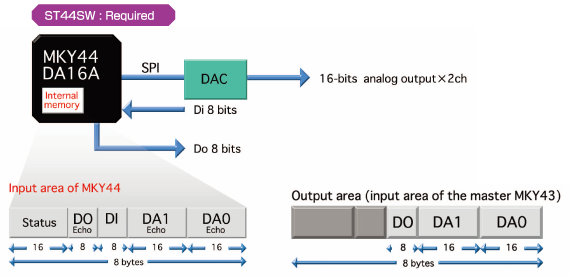

MKY44-DA16A
|
16-bit DA 2ch: | DAC external (AD5752) |
| DI/8 bits DO/8 bits | ||

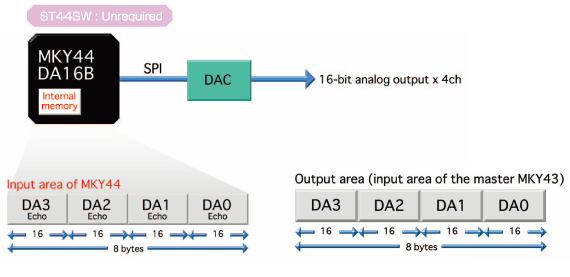

MKY44-DA16B
|
16-bit DA 4ch: | DAC external (AD5754) |
