Board
CUnet boards for integration (Slave board)
This slave board supports CUnet.
CUB Easy+ (easy customization) can be used to customize all of the slave boards (e.g. to integrate functions into one board).
Easy+ (easy board customization)
| Type | Function | Size | Operating voltage |
Communication Speed/Mod |
Mounted IC | Features |
|---|---|---|---|---|---|---|
 CUB44-IO32A Discontinued |
DIO with filter function Insulated 16DIN 16DOUT |
130mm (W) 64mm (D) 29.3mm (H) |
24.0 V | 12/6/3 Mbps Half-duplex |
 MKY44-IO32A |
Communication connector: Modular I/O connector: MIL |

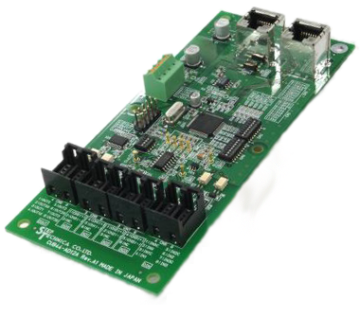

 CUB44-AD12A Discontinued |
12 bit AD 4 ch Insulated 4DIN 4DOUT |
150 mm (W) 64 mm (D) 25.7 mm (H) |
 MKY44-AD12A |
Communication connector: Modular Analog connector: e-CON I/O connector: e-CON |
||
 CUB44-AD16A Discontinued |
16 bit AD 2 ch Insulated 4DIN 4DOUT |
150 mm (W) 64 mm (D) 32.5 mm (H) |
 MKY44-AD16A |
|||
 CUB44-AD16B Discontinued |
16 bit AD 4 ch |  MKY44-AD16B |
Communication connector: Modular Analog connector: e-CON |
|||
 CUB44-DA16A Discontinued |
16 bit DA 2 ch Insulated 4DIN 4DOUT |
 MKY44-DA16A |
Communication connector: Modular Analog connector: e-CON I/O connector: e-CON |
|||
 CUB-46T3I/O-A(B) Discontinued |
16DIN 16DOUT | 95 mm (W) 117 mm (D) |
5.0 V |  MKY46 |
Communication connector: Modular I/O board: Removable Evaluation board CUB-46T3I/O-B for counter I/O |
